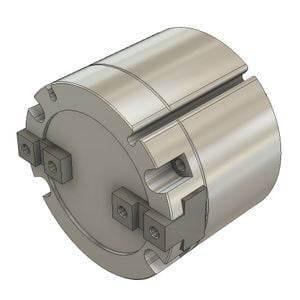

Airtac Precision Gripper Slide Ways - Part # HFCI40
$174.60
AirTAC Gripper with parallel fingers movement, 2-fingers, Ø40mm piston diameter, 8mm fingers stroke, M5x0.8 connection ports, with magnet, with shock absorption by elastic bumpers
Product Details
manufacturer AirTAC
product type Gripper with parallel fingers movement
product feature 2-fingers
operation principle Double acting
fingers option Threaded holes parallel to piston axis
piston diameter [mm] 40
fingers stroke [mm] 8
fingers stroke repeatability [mm] ±0.01
fingers closing force at 0.5MPa (73psi) [N] 354 (for 30mm gripping point)
fingers opening force at 0.5MPa (73psi) [N] 390 (for 30mm gripping point)
max number of cycles per minute [cycle/min] 60
working pressure [MPa] 0.15÷0.70 (22÷101psi)
connection ports M5x0.8
piston position detection with magnet
piston cushioning elastomer bumpers
weight [kg] 0.355
weight [lb] 0.782
